Star detection from an image

The way of star detection is in a principle as follows. That is, a small circular region brighter than the background is regarded as a star, the coordinates of the center of gravity as the position of the star and the total amount of pixel value of the region as the brightness. Therefore, it is required to determine the background level and the threshold between a real star and noise exactly.

The simplest way is to assume that the background level is equal wherever on an image and regard the average value of all pixels as the background. However, general photo images are inclined to be brightest in the center and dimmer in the circumference.

figure56

Nova Cas 1995 Photo: Seiichi Yoshida
Dec. 21, 1995, 19:02 JST (1 min)
Fujishiro Town, Ibaraki Pref. Japan
25-cm f/6.3 Schmidt-Cassegrain
Konica color GX3200

displaymath304

Cross section

figure62

Therefore, the background level should be expressed as a quadratic function of x,y:

displaymath305

This is called a flatfield function. The parameters tex2html_wrap_inline310 are obtained in the method of least squares so that the absolute difference between the pixel value and the flatfield value become least.

Accordingly, the process of star detection should be as follows.

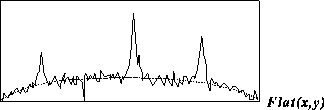

  1. Obtains the preliminary flatfield function tex2html_wrap_inline312 with all pixels.

    figure69

  2. Calculates the standard deviation tex2html_wrap_inline314 of the difference between each pixel value and the preliminary flatfield value.

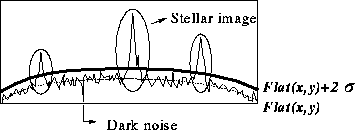

  3. The pixels whose value is greater than tex2html_wrap_inline316 are regarded as part of a star. The pixels whose value is less than tex2html_wrap_inline318 are regarded as dark noise.

    figure77

    By the way, the preliminary flatfield function should be much influenced by stars or dark noise. Therefore the system select pixels whose value is between tex2html_wrap_inline320 as real background and re-calculates true flatfield function tex2html_wrap_inline322 with only those pixels.

  4. Calculates the true standard deviation tex2html_wrap_inline324 with the true flatfield.
  5. The pixels whose value p is greater than tex2html_wrap_inline328 are regarded as part of star and the system changes the value as tex2html_wrap_inline330 . gif The pixels whose value is less than the threshold, the system changes it as 0.

    figure85

  6. The non-zero pixels are separated into some small regions. Each region is regarded as a star and the coordinates of the center of gravity and the total pixel value as brightness are obtained.

    figure88

Then I tried to detect stars from some real images in the process mentioned above. The results are shown below.

Three images are put vertically. The top is the original. The middle shows detected stars when the preliminary flatfield function is obtained. Only pixels whose value is greater than the preliminary flatfield + the twice of the standard deviation are plotted. The bottom shows detected stars when the true flatfield function is obtained. The red pixels in the images are dark noise. At the step of the second image, though very faint stars are not detected, bright ones are almost all detected. And there are almost no noise. On the other hand, at the third step, the image is very noisy, which implies star detection has been failed.

This experimentation shows that the preliminary flatfield function and the standard deviation produces better result. So the current prototype system omits the step 3, 4 from the process mentioned above to detect stars. In this case, the standard deviation is large because of bright stars' influence and very faint stars are not detected. However, it does not matter at all in order to obtain a map function, which can be calculated with some bright stars enough to be detected in this method. On the contrary, too many faint stars may only cause the enormous calculation. But considering to detect new objects automatically, this is a big problem to be solved in the future.
