    ASTRONOMICAL IMAGE ON-LINE ACCESS INTERFACE の使い方

「星についての調べ方」に戻る

下記のページを開きます。

ASTRONOMICAL IMAGE ON-LINE ACCESS INTERFACE
http://dss.mtk.nao.ac.jp/

ここでは例として、赤経17h52m26s.59、赤緯-17o40'00".7 付近の、5x5分角の画像を調べることにしましょう。

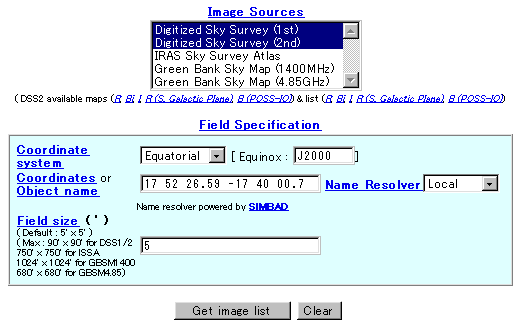

必要なパラメータを入力します。

Image Sources
見たい画像の種類を選びます。 DSSのすべての画像を見たい時には、「Digitized Sky Survey (1st)」と「Digitized Sky Survey (2nd)」の2つを選びます。
Coordinates or Object name
赤経赤緯を入力します。「17 52 26.59 -17 40 00.7」と入力します。
Field size
ここでは5x5分角の画像を見たいので、「5」と入力します。

「Get image list」ボタンを押すと、見られる画像の一覧が表示されます。

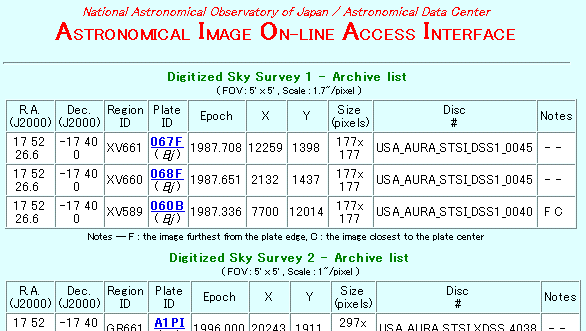

表示された一覧の中から見たい画像を選び、Plate IDをクリックすると、画像が表示されます。


Acknowledgements:

The Digitized Sky Surveys were produced at the Space Telescope Science Institute under U.S. Government grant NAG W-2166. The images of these surveys are based on photographic data obtained using the Oschin Schmidt Telescope on Palomar Mountain and the UK Schmidt Telescope. The plates were processed into the present compressed digital form with the permission of these institutions.

The National Geographic Society - Palomar Observatory Sky Atlas (POSS-I) was made by the California Institute of Technology with grants from the National Geographic Society.

The Second Palomar Observatory Sky Survey (POSS-II) was made by the California Institute of Technology with funds from the National Science Foundation, the National Geographic Society, the Sloan Foundation, the Samuel Oschin Foundation, and the Eastman Kodak Corporation.

The Oschin Schmidt Telescope is operated by the California Institute of Technology and Palomar Observatory.

The UK Schmidt Telescope was operated by the Royal Observatory Edinburgh, with funding from the UK Science and Engineering Research Council (later the UK Particle Physics and Astronomy Research Council), until 1988 June, and thereafter by the Anglo-Australian Observatory. The blue plates of the southern Sky Atlas and its Equatorial Extension (together known as the SERC-J), as well as the Equatorial Red (ER), and the Second Epoch [red] Survey (SES) were all taken with the UK Schmidt.

Supplemental funding for sky-survey work at the ST ScI is provided by the European Southern Observatory.
